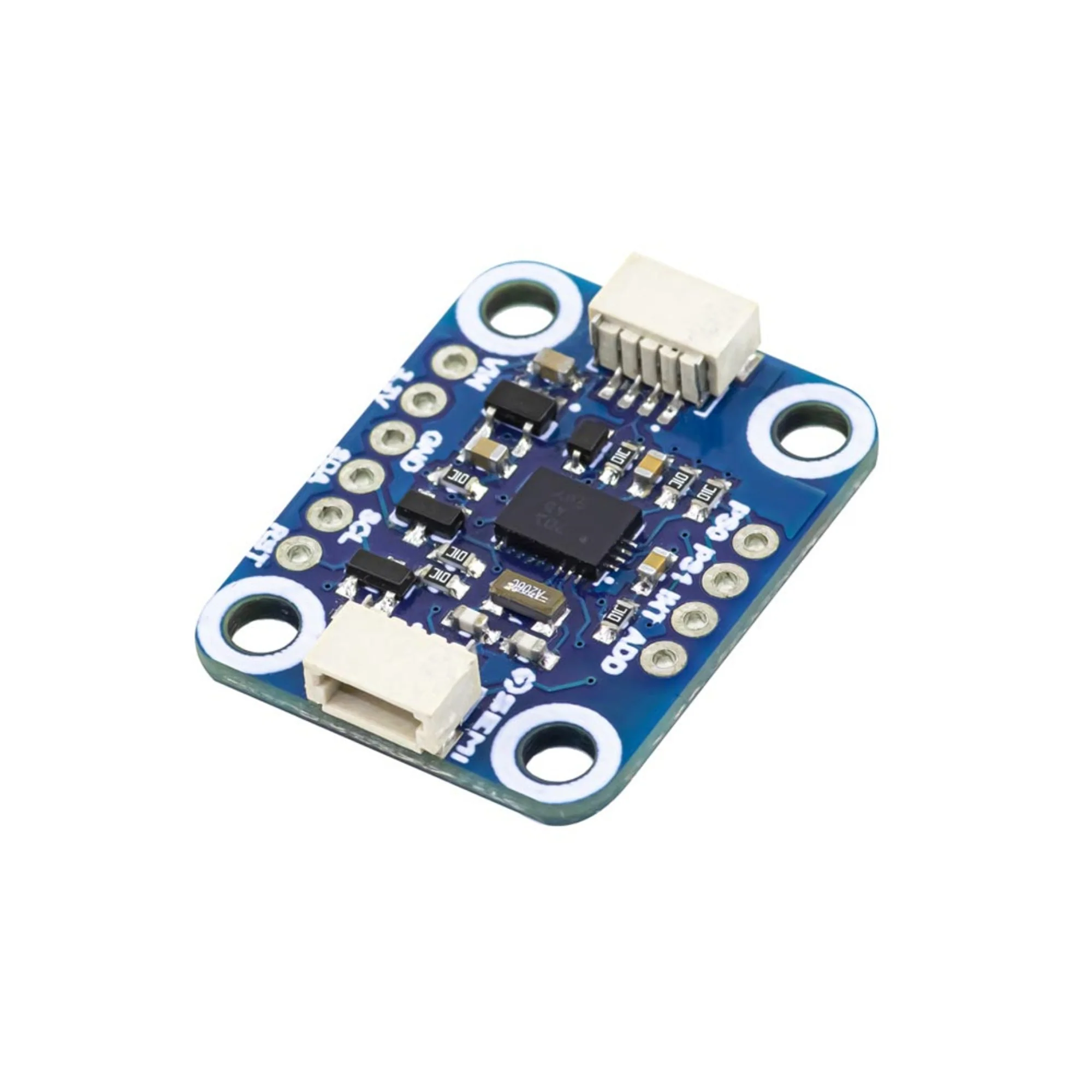

7Semi BNO055 9-DOF Absolute Orientation Sensor Breakout I2C Qwiic

The 7Semi BNO055 9-DOF Absolute Orientation Sensor Breakout is a compact module based on the Bosch BNO055 sensor that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. It includes an onboard 32-bit microcontroller running Bosch’s sensor fusion algorithm, providing direct orientation data such as Euler angles and quaternions via I2C. The board supports both 3.3 V and 5 V logic and is compatible with the Qwiic interface for easy connectivity.

Technical Specifications:

• Brand: 7Semi
• Sensor IC: Bosch BNO055

• Degrees of Freedom: 9 (3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer)

• Interface: I2C (Qwiic compatible)

• Supply Voltage: 3.3 V to 5.0 V

• Output Data: Euler angles, quaternions, linear acceleration, gravity vector

• Output Data Rate: Up to 100 Hz

• Operating Temperature: -40 °C to +85 °C

• Power Modes: Normal, low power, suspend

• Communication Address: Selectable I2C address

• Mounting: 4-pin Qwiic connector and solder pads

• Form Factor: Compact breakout PCB

Features:

• Integrated sensor fusion with onboard microcontroller
• Outputs ready-to-use orientation data (Euler, quaternion)

• 9-axis sensing with high accuracy and stability

• Qwiic compatible for plug-and-play connectivity

• Operates on both 3.3 V and 5 V systems

• Low latency and low power consumption

Applications:

• Robotics and drone orientation control
• Motion tracking and gesture recognition

• Virtual and augmented reality systems

• Inertial navigation and stabilization

• Wearable motion detection devices

• Industrial automation and control systems
