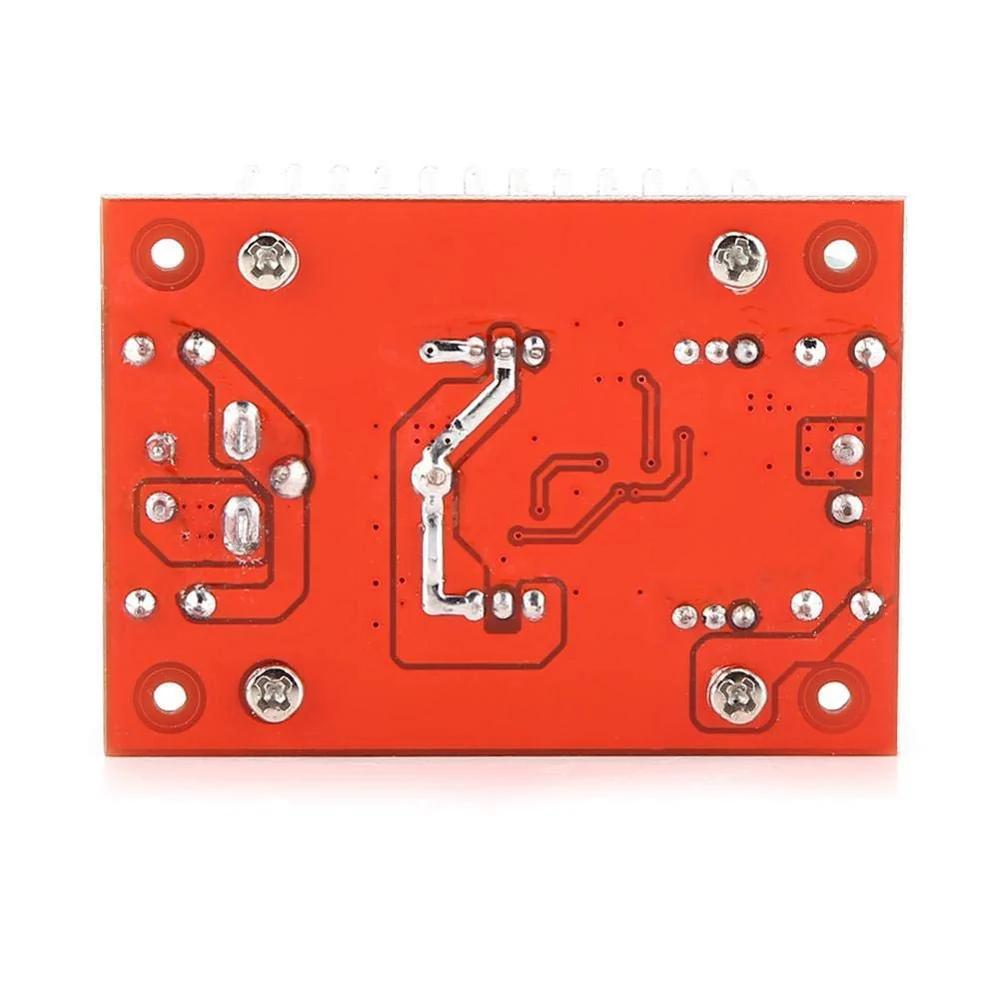

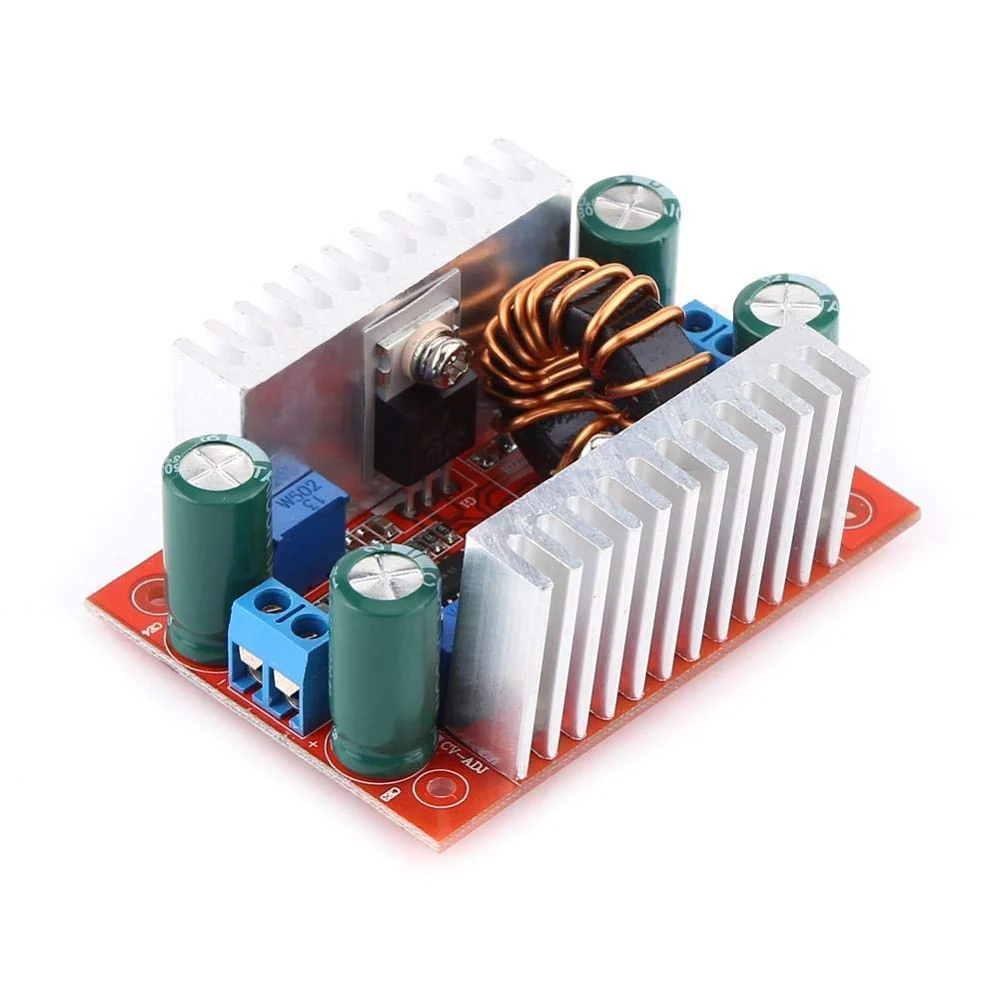

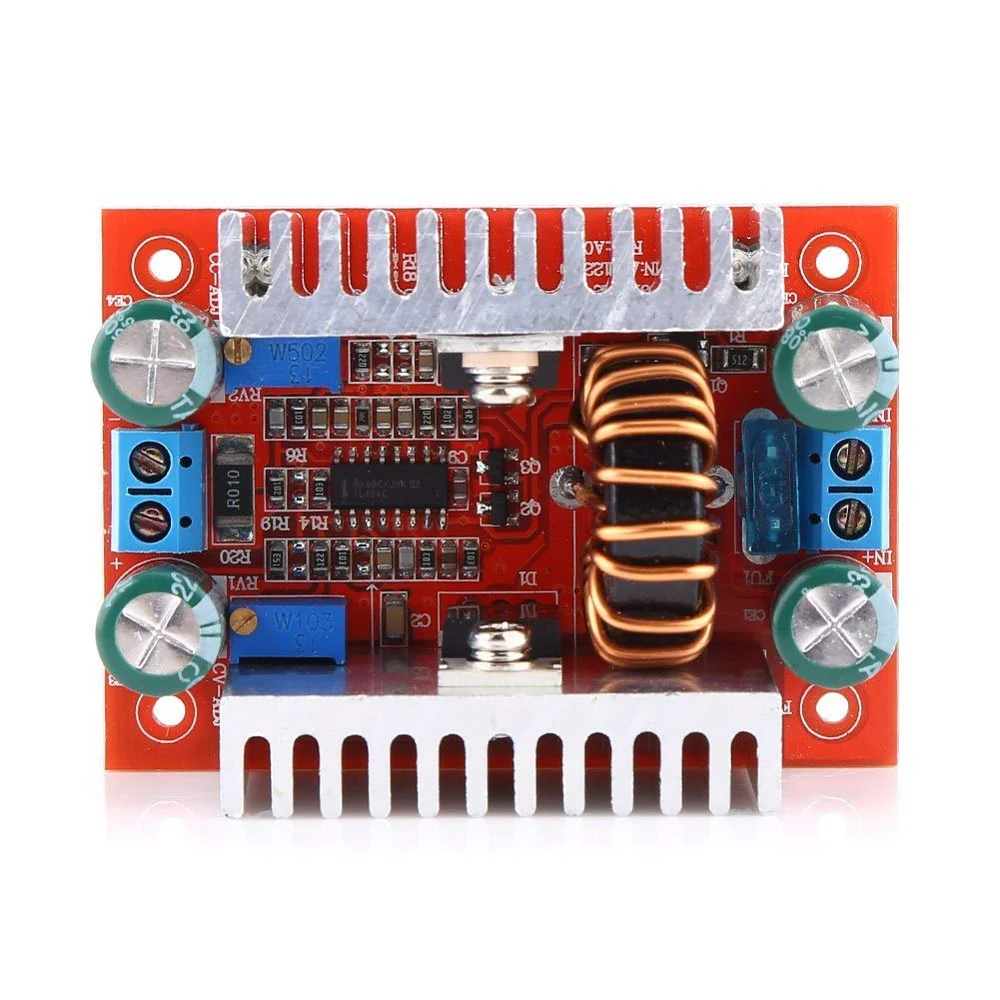

Boost Module 400W DC-DC Step-up Boost Converter Constant Current Power Supply Module LED Driver
400W 15A DC-DC Boost Converter Step-up Module is a handy power accessory board that allows you to fine-tune the amount of power your project receives.
Technical Specification:
- Input voltage: DC 8.5V-50V
- Input current: 15A (MAX)
- Output voltage: 10 - 60V
- Temperature: - 40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no
- Installation: 4 2.55mm screw holes
- Connection method: Connection Output
- Size: 67mm*48mm*28mm (L*W*H)
Features:
- Module has 2 heat sinks that would ensure a better heat dissipation
- Wiring is convenient with large current screw terminals
Applications:
- Can be used for charging batteries
- Can be used as power supply for any electronic equipment
- Can be used as a driver for high power LED lights or voltage regulator for solar panels
400W 15A DC-DC Boost Converter Step-up Module is a handy power accessory board that allows you to fine-tune the amount of power your project receives.
Technical Specification:
- Input voltage: DC 8.5V-50V
- Input current: 15A (MAX)
- Output voltage: 10 - 60V
- Temperature: - 40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no
- Installation: 4 2.55mm screw holes
- Connection method: Connection Output
- Size: 67mm*48mm*28mm (L*W*H)
Features:
- Module has 2 heat sinks that would ensure a better heat dissipation
- Wiring is convenient with large current screw terminals
Applications:
- Can be used for charging batteries
- Can be used as power supply for any electronic equipment
- Can be used as a driver for high power LED lights or voltage regulator for solar panels
$395.00
Boost Module 400W DC-DC Step-up Boost Converter Constant Current Power Supply Module LED Driver—
$395.00
